Scorpion-I / Portable Ventilating Robot

sales@fourobot.com

Message

Detail

This robot is mainly used for smoke ventilation and cooling in indoor environment,and is suitable for rescue path making such as in high-rise buildings, shoppingmalls, supermarkets, underground parking lots, street shops, substations,factories, warehouses, and etc. This portable robot consists ofrobot platform, positive pressure water-driven smoke exhaust fan, watermonitor, and remote control. It is with compact and flexible design, and can bestored in the compartment of a fire truck. It can be deployed more quickly andis more suitable for entering fire scenes with limited space.

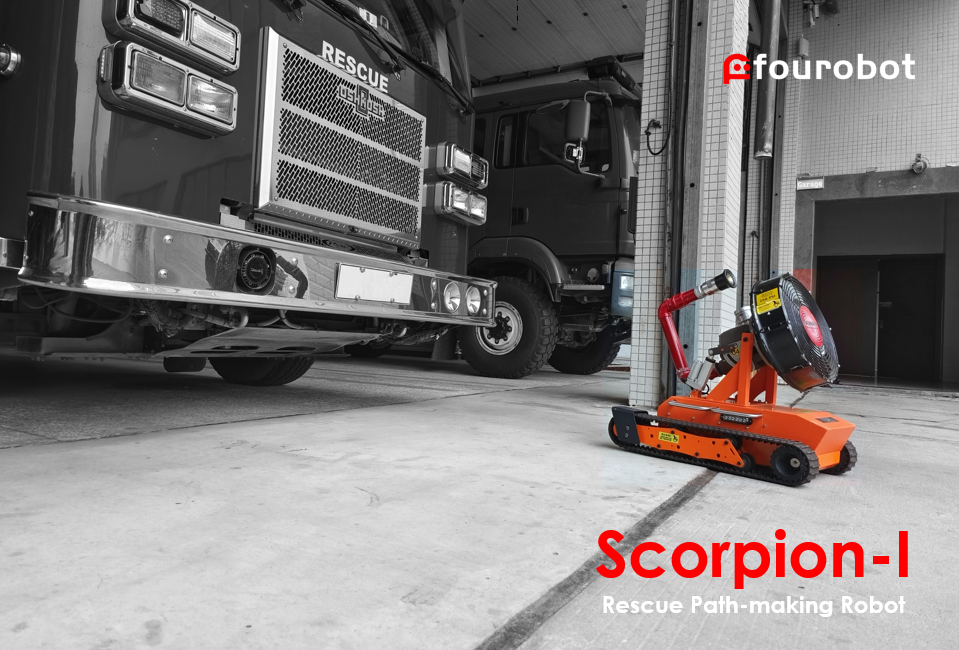

RXR-YM8000D-430 / Rescue Path-making Robot
BASIC DATA
Crawler	All-terrain flame-resistant rubber crawler
Turning Radius	Turning in place
Control Mode	Remote Control
VENTILATION FAN
Driving Mode	Driven by Water
Diameter	400mm
Work Pressure	0.8Mpa∽1.4Mpa
CCCFVentilation Volume	7500∽12000m³/h
Tilt Angle	Vertically +0°～ +40°
WATER MONITOR
Extinguisher Type	Water
Spray Mode	Waterjet / Diffused Waterjet
Rated Water Flow	4∽6L/s
Tilt Angle	Vertically +0°～ +40° together with fan

Easy to Transport

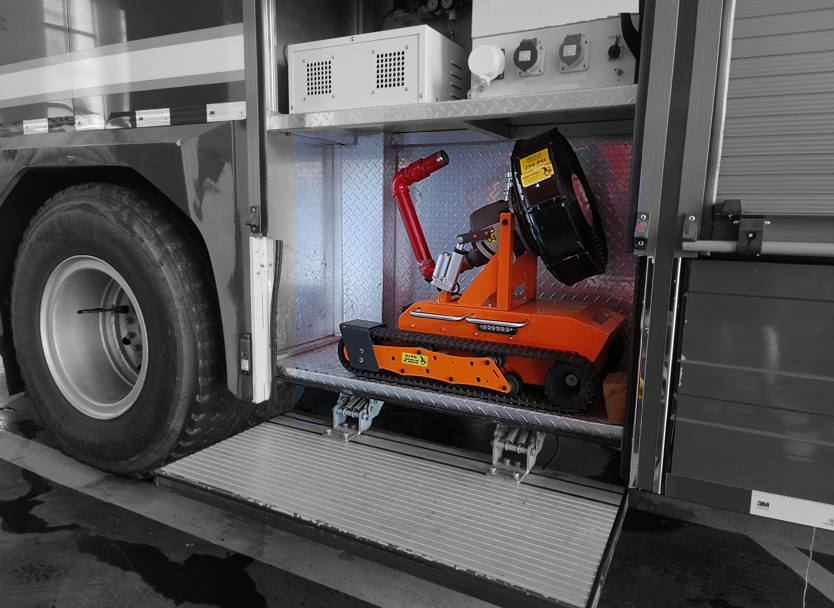

The mini size of robot allows it to be easily fit into a fire truck cabinet, making it easier to transport and making it possible that human fire fighters, water, fire truck and robot reach to the fire scene at the same time.

Faster to Deploy and Retrieve

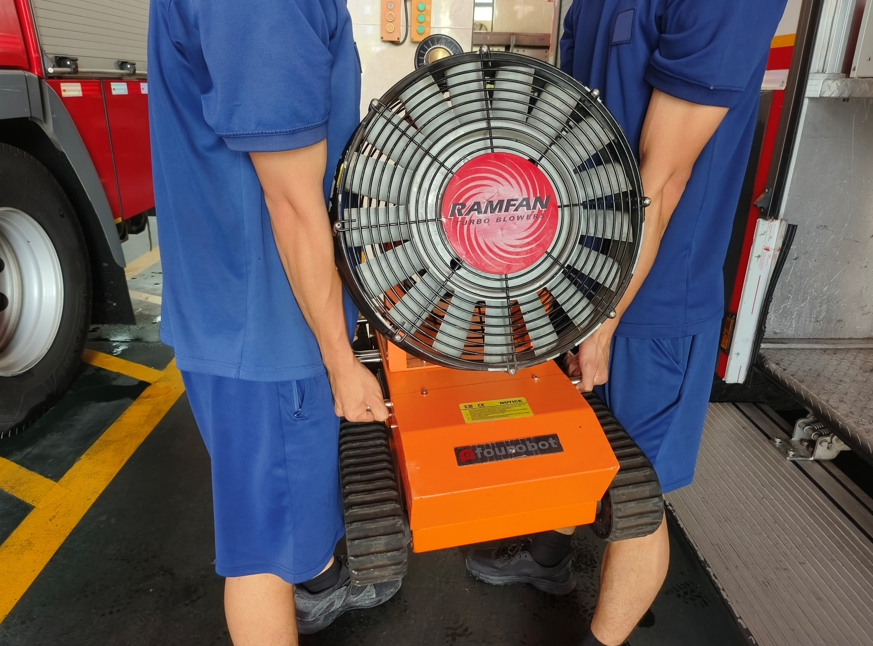

The light weight robot (70Kg) allows 2 human fire fighters to carry to fire scenes, making it faster to deploy to a fire site and faster to retrieve later from the scene.
