This robot is mainly used for fire fighting and rescue missions incities, chemical industries, tunnels, airports, seaports, steel plants, andfactory workshops. The robot consists of robot platform, water monitor, andremote control. The mini size of the robot makes it quicker to deploy, easierto access to a limited space of a fire scene and handier to keep the robot in afire truck cabinet after use.
RXR-M20D-17 / Portable Fire Fighting Robot | |
BASIC DATA | |
Crawler | All-terrain flame-resistant rubber crawler |
Power | Lithium Battery |
Turning Radius | Turning in place |
Control Mode | Remote Control |
MONITOR | |
Extinguisher Types | Water / Foam |
Work Pressure | 0.8Mpa(8kg/c㎡) |
Spray Mode | WaterJet / Diffused Water Jet / Auto-sway |
Rated Water Flow | 10L∽20L/s (600∽1200L/min) |
Throwing Range | 45m (@0.8MPa) (8kg/c㎡) |

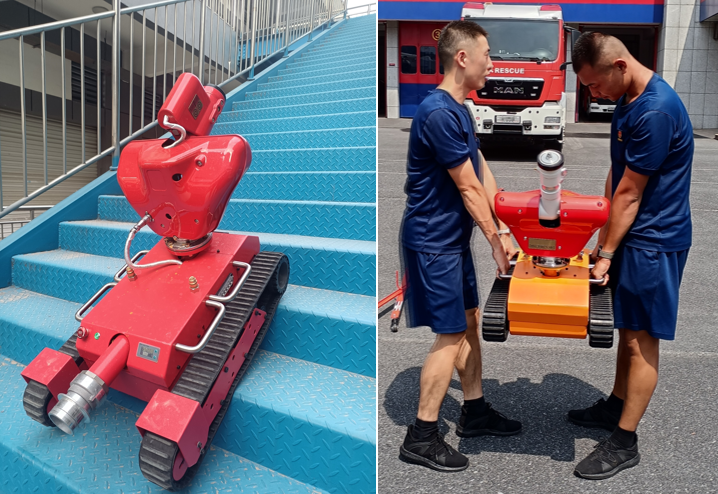

Faster to Deploy and Retrieve
The light weight robot (70Kg)allows 2 human fire fighters to carry to fire scenes, making it faster todeploy to a fire site and faster to retrieve later from the scene.

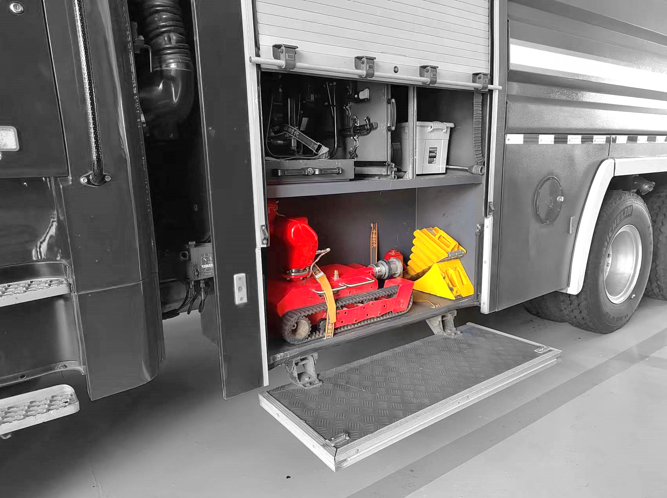

Easy to Transport
The mini size of robot allows it tobe easily fit into a fire truck cabinet, making it easier to transport and making it possible that human firefighters, water, fire truck and fire robot reach the fire scene at the sametime.
